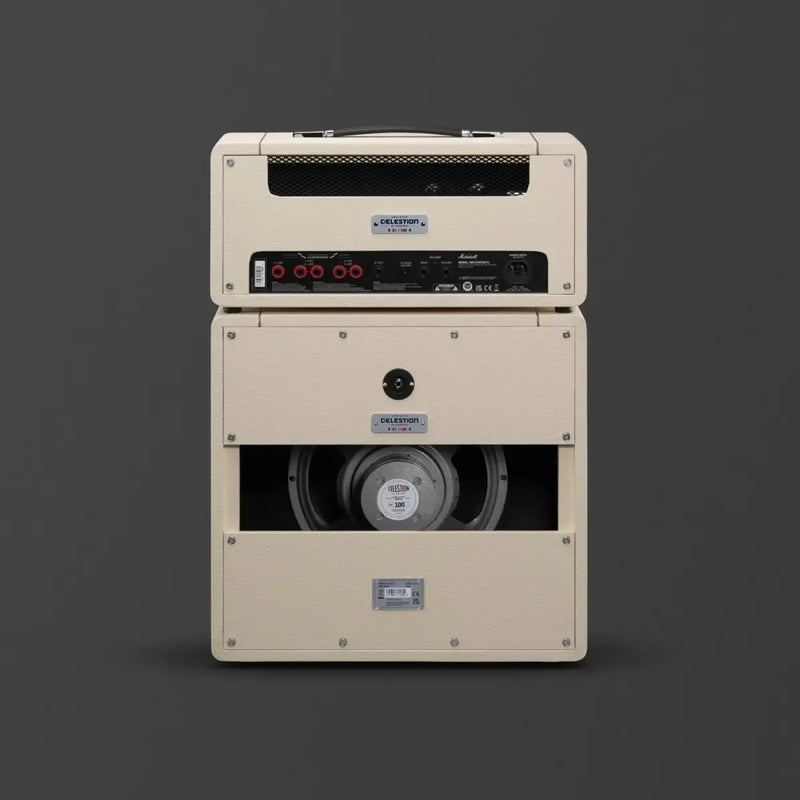

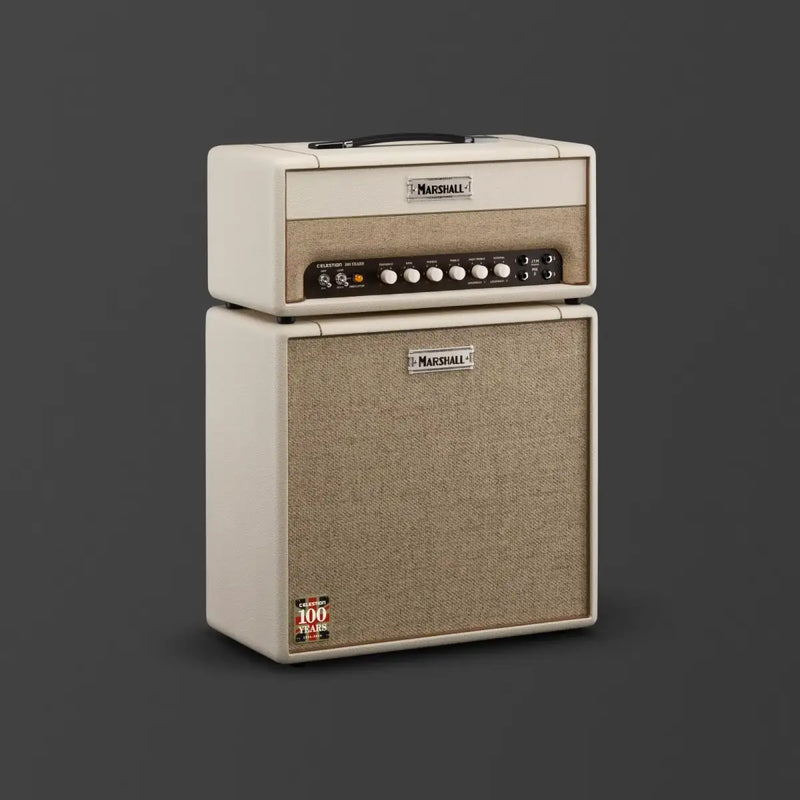

Marshall Celestion 100 Limited Edition ST20 Head + 1x12 Cabinet - Numbered 55/100
THE AMP THAT’S ONE IN A HUNDRED
To mark Celestion’s 100th anniversary and our 60+ year relationship, we gave the Studio JTM a special redesign. Available in a limited run of only 100, this UK-made amp comes in a new cream colour with an anniversary Alnico Celestion speaker, making it a true collectible. If you ask us, the only right way to celebrate 100 years, is this way.
ELECTRONICS
OUTPUT WATTAGE
HEAD: 20W (WITH POWER REDUCTION OPTION TO 5W) / CABINET: 30W
OUTPUTS
-HEAD: SPEAKER OUTPUTS: 5 X ¼"
JACK SOCKETS (16Ω LOAD / 8Ω LOAD / 4Ω LOAD) (DI OUT JACK) (¼" JACK)
INPUTS
-HEAD: 4X ¼” JACK INSTRUMENT INPUTS (HIGH/LOW SENSITIVITY) CABINET: 1
CONTROLS
-HEAD: NORMAL/LOUDNESS II, HIGH TREBLE/LOUDNESS I, TREBLE, MIDDLE, BASS PRESENSE
VALVES
PREAMP VALVES
-2 X ECC83, 1 X ECC83 (PHASE SPLITTER)
POWER AMP VALVES
-2 X 5881
SPEAKERS
SPEAKER CONFIGURATION
-1X12”
SPEAKER MODEL
-CELESTION 100 ALNICO SPEAKER (16Ω, 30W)
UNIT IMPEDANCE
-SPEAKER OUTPUT IMPEDANCE 16Ω
UNIT DIMENSIONS
-WEIGHT (KG)
HEAD: 9.25 KG / 20.4 LBS / CABINET: 13.2 KG / 29.1 LBS
WIDTH (MM)
-HEAD: 500 MM / 19.7” / CABINET: 500 MM / 19.7”
HEIGHT (MM)
-HEAD: 240 MM / 9.4” / CABINET: 490 MM / 19.3”
DEPTH (MM)
-HEAD: 230 MM / 9.1” / CABINET: 265 MM / 10.4”
